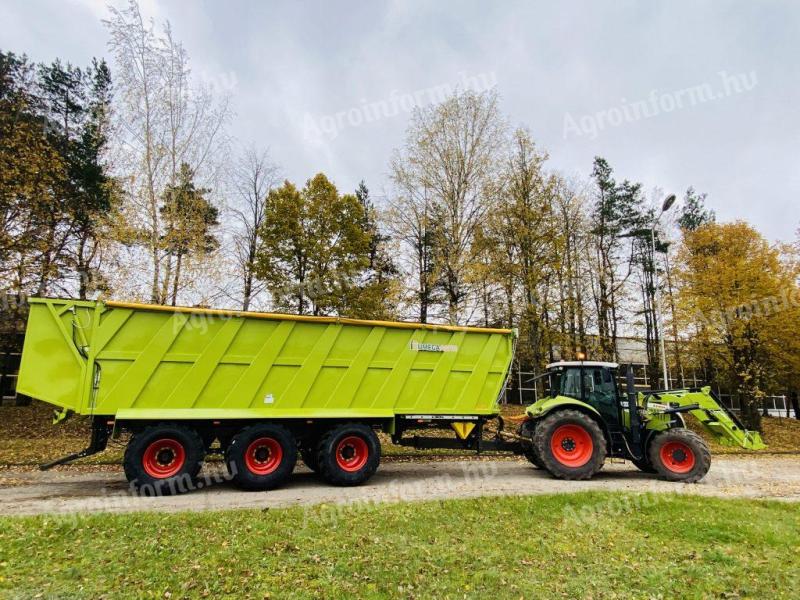

UMEGA PI 42 drop-down trailer

86.550 EUR +VAT

Somogy county, 7400 Kaposvár

Sharing:

5

Description
The new PI Series - reliable, durable and easy to use!

This unique and versatile trailer opens up new horizons in agricultural logistics and transport.

The advantages of this trailer:
- Durability: high quality, long life.
- Sturdy construction: ensures reliable operation even under extreme conditions.
- Extra high productivity: maximum efficiency and performance.
- Easy maintenance: quick and easy servicing.
- Fully welded tubular base: all supporting structures are made of durable welded tubes.
- Solid shell structure body: strong, fully welded tubular support.
- Two-stage full discharge system: with mosaic platform section for fast and efficient emptying.
- Balanced suspension and axle mechanism: for optimum load/operating cost ratio.
- Capacity up to 55 m³: transport large quantities of material at a time.
- Stable performance on any terrain: ensuring high performance even in difficult conditions.
- Indoor applications: suitable for working in various confined spaces.
- Partial discharge: flexibility depending on the amount of material transported.
- Load feeding: precise and controlled material discharge.
- Up to four versatile accessories: connection of additional devices for different needs.

Technical specifications:
Technical payload (kg): 42 000
Mass* (kg): 11 500
Overall dimensions: length (mm): 12 000
Overall dimensions: width (mm): 2 800
Overall dimensions: height* (mm): 3 600
Volume: 45-54 m3
Number of shafts (pieces): 3
Maximum speed (km/h): 40
Wheel size: 710/50 26,5″ ET-100
Braking system: dual circuit air brake

Options:
Elevation 400mm (54m3)
Transmission pulley
Universal spreader
Universal sprayer Universal spout
Universal sprayer Universal spreader Universal spreader Universal spreader Universal spreader Universal spreader with tarpaulin
Other colours
Spare wheel
Galvanised frame
Towing head K80
Spreader barrier
8 cell weighing system
Printer
Other tyres

Additional options are available for the trailer.

Should you require any further information, our colleagues will be happy to assist you.
