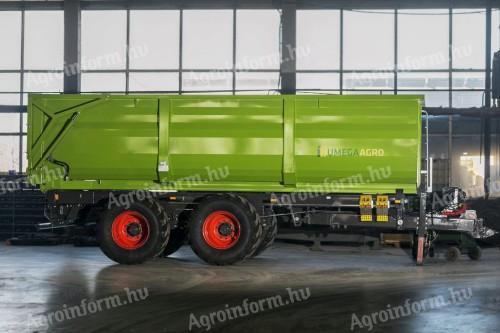

UMEGA SPC BS19 tandem monocoque "turtle" trailer

41.100 EUR +VAT

Somogy county, 7400 Kaposvár

Sharing:

4

Description
SPC - functional, ergonomic and cost-effective
Exclusive design, comfort and uncompromising load handling features - this combination crowns the fourth generation of SPC.

Benefits of the trailer:
- S355 steel chassis
- New design of the monocoque body
- New side wall anchorage system
- Conical body design for better emptying
- Special tilting work rollers
- Double traction design (road-train mode)
- New tarpaulin design
- New universal extension side walls
- Redesigned additional details
- Reinforced axles and brake system components
- Improved braking system

Standard equipment:
- Suspended drawbar, hydraulic support leg
- Umega D50 towing head
- Steered rear axle
- Dual circuit air brake system with automatic brake force distribution
- Lighting kit (front, rear, side LED)
- Rear ¼ fender
- Underrun protection
- Surround rear

Technical data:
Maximum permissible gross laden weight (kg): 28 000
Maximum payload (kg): 20 000
Maximum payload (kg): 8 000
Overall dimensions: length (mm): 8 820
Overall dimensions: width (mm): 2 550
Overall dimensions: height* (mm): 3 220
Volume: (m3): 24-36
Number of shafts (pieces): 2
Maximum speed (km/h): 40
Wheels size: 600/50 22,5″
Braking system: hydraulic/mechanical

Option:
- Steered rear axle
- Tilt, with retractable tarp holder
- Side wall extension 300 mm (29 m3)
- Side wall extension 600 mm (33 m3)
- Side wall extension 800 mm (36 m3)
- Silo height 800 mm (31 m3)
- Other colours
- Spare wheel
- Galvanised frame
- Towing head K80
- Other tyres (factory recommendation)

Additional options are available for the trailer.

Should you require any further information, please do not hesitate to contact us.
