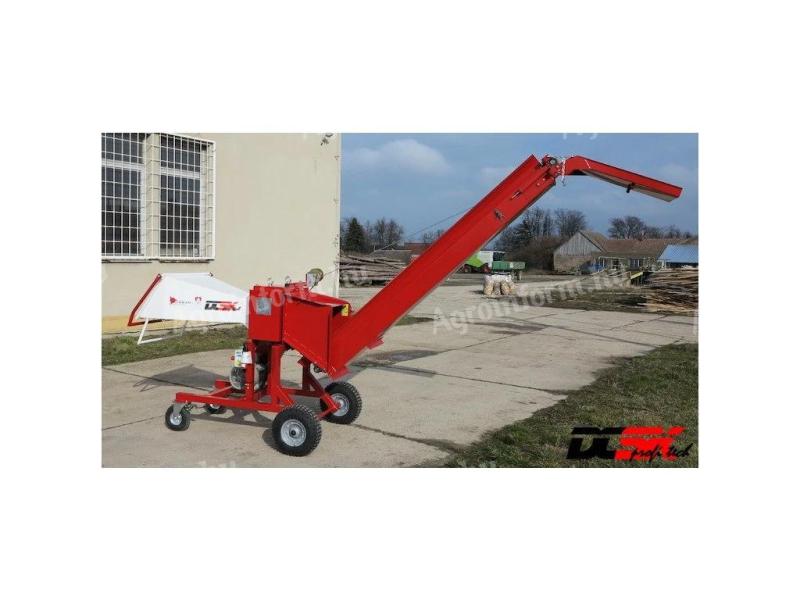

URBAN EM70 shredder with conveyor belt 3,4 m

Spišské Podhradie, 053 04 SLOVAKIA

Sharing:

8

Description
The URBAN EM70 is powered by a 5.5 kW Siemens three-phase electric motor. Power from the motor is transmitted by a V-belt to an oil-filled gearbox which drives the shredder. The chassis of the shredder has 4 wheels for easy manual handling (2 fixed and 2 rotating with brakes).

up to 80 mm diameter
The machine is supplied with: instructions for use, including declaration of conformity.

Weight: 458 kg
Max. fresh softwood (pine) diameter: 80 mm
Max. diameter of fresh hardwood (oak, hornbeam): 65 mm
Max. diameter of dry hardwood (oak, hornbeam): 50 mm
Max. prism dimensions (spruce): 60 x 60 mm
Max. board dimensions (spruce): 190 x 20 mm
Chip length (not adjustable): 6-13 cm
Hole for chipping unit: 200 x 200 mm
Hopper inlet opening: 700 x 400 mm
Maximum output: 4 m³/h
Motor power: 5,5 kW
Number of cutting knives: 6
Gap between blades: approx. 0,1 mm
Blade life per sharpening: 100-500 m³ of wood chips
Overload protection: slip protection + thermal protection
Dimensions supplied
