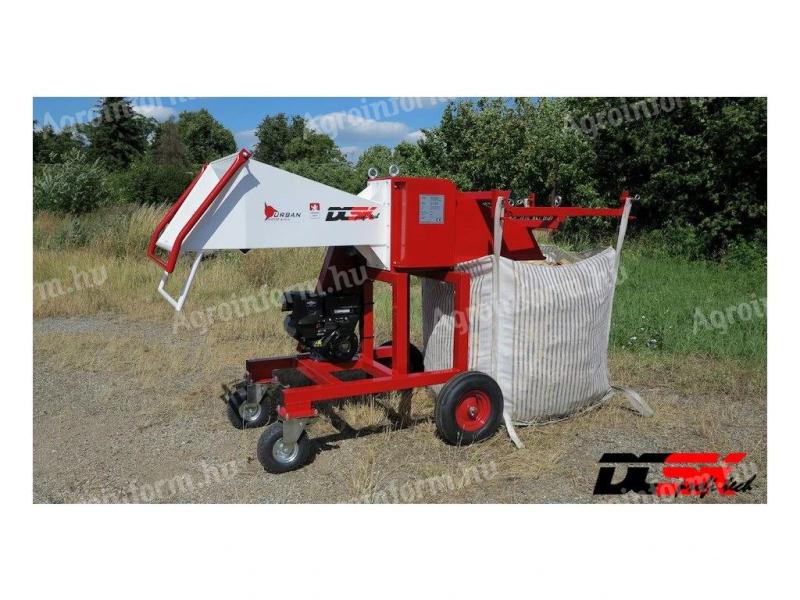

URBAN SM70 BIG-BAG shredder

Spišské Podhradie, 053 04 SLOVAKIA

Sharing:

6

Description
The URBAN SM70 is powered by a 10 hp Briggs & Stratton VANGUARD engine. From the engine, power is transmitted by a V-belt to an oil-filled gearbox that drives the cutting gears. The chassis of the shredder has 4 wheels for easy manual handling (2 fixed and 2 rotating with brakes).

up to 80 mm diameter
Machine content: 50 files, instructions for use including declaration of conformity

Weight: 342 kg
Max. diameter of fresh softwood (pine): 80 mm
Max. diameter of fresh hardwood (oak, hornbeam): 65 mm
Max. diameter of dry hardwood (oak, hornbeam): 50 mm
Max. prism dimensions (spruce): 60 x 60 mm
Max. board dimensions (spruce): 190 x 20 mm
Chip length (not adjustable): 6 - 13 cm
Opening for the chipping unit: 200 x 200 mm
Hopper inlet opening: 700 x 400 mm
Working speed of the shredder: 200/min
Maximum output: 4 m³/h
Engine power: 7,5 kW (10 HP)
Fuel: natural 95
Fuel tank capacity: 4 l
Average fuel consumption: 1 - 1,5 l/h
Number of blades: 6
Number of blades
