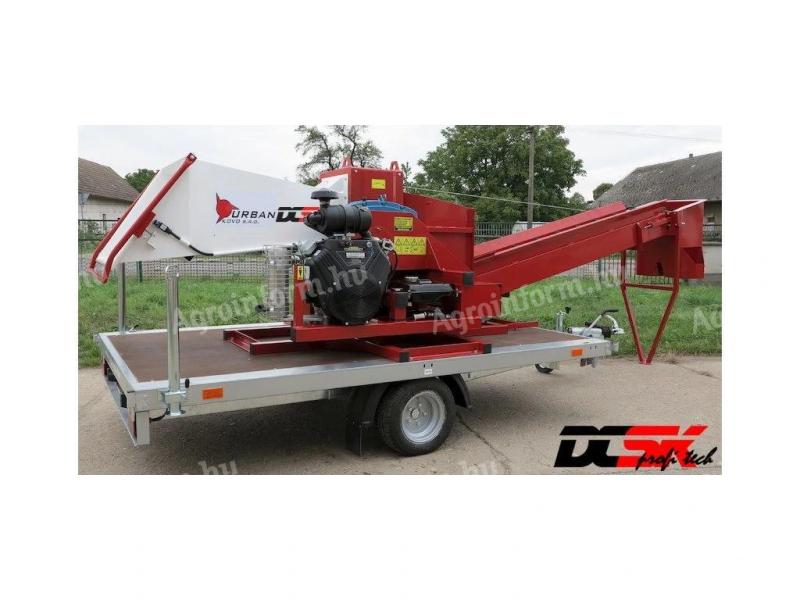

URBAN SMH110 shredder with 2,6 m conveyor

Spišské Podhradie, 053 04 SLOVAKIA

Sharing:

7

Description
The URBAN SMH110 is mobile and powerful. Powered by a Briggs & Stratton VANGUARD 35 hp engine. The SMH110 is equipped with a road chassis and license plate, making it easy to transport to any location. The shredder is mounted on a trailer on a 360° rotating table.

A Group B licence is sufficient for the 3 500 kg maximum permissible gross laden weight (maximum permissible gross laden weight of the towing vehicle is 2 200 kg).

Up to 120 mm diameter
Included with the machine:
- electric motor starter with battery,
- engine clock counter,
- Instruction manual with declaration of conformity,
- a large technical licence for the trailer

Weight: 1250 kg
Max. fresh softwood (pine) diameter: 120 mm
Max. diameter of fresh hardwood (oak, hornbeam): 100 mm
Max. diameter of dry hardwood (oak, hornbeam): 80 mm
Max. prism dimensions (spruce): 100 x 100 mm
Max. board dimensions (spruce): 280 x 40 mm
Chip length (not adjustable): 7 - 22 cm
Hole for chipping unit: 290 x 290 mm
Hopper inlet opening: 800 x 600 mm
The shredding machine works
