URBAN SMH110 shredder with conveyor, 4,1 m

Spišské Podhradie, 053 04 SLOVAKIA

Sharing:

12

Description

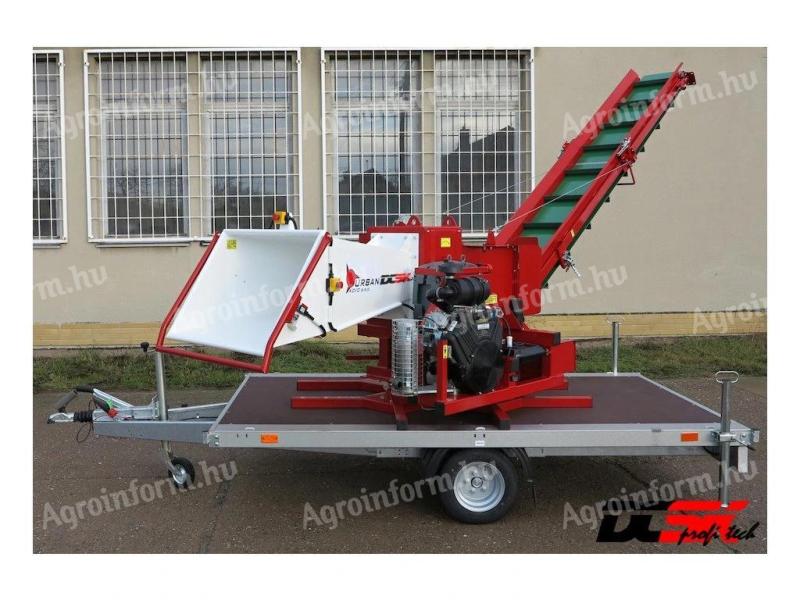

The URBAN SMH110 is mobile and powerful. Powered by a Briggs & Stratton VANGUARD 35 hp engine. The SMH110 is equipped with a road chassis and license plate, making it easy to transport to any location. The shredder is mounted on a trailer on a 360° rotating table.

A category B licence is sufficient for the 3500 kg maximum permissible gross laden weight (maximum permissible gross laden weight of the towing vehicle is 2200 kg).

Up to 120 mm diameter
The machine includes:
- electric motor starter with battery
- engine clock counter
- Instruction manual with declaration of conformity
- a large technical licence for the trailer

Weight: 1250 kg
Max. fresh softwood (pine) diameter: 120 mm
Max. diameter of fresh hardwood (oak, hornbeam): 100 mm
Max. diameter of dry hardwood (oak, hornbeam): 80 mm
Max. prism dimensions (spruce): 100 x 100 mm
Max. board dimensions (spruce): 280 x 40 mm
Chips length (not adjustable): 7-22 cm
Hole for chipping unit: 290 x 290 mm
Hopper inlet opening: 800 x 600 mm
Working speed of the shredder: 170/min.
Maximum output: 10 m³/h
Engine power: 26,1 kW (35 HP)
Fuel: Natural 95
Fuel tank capacity: 15 l
Average fuel consumption: 3-4 l/h
Electric engine starter: yes
Hour meter + rev counter: yes
Number of blades: 6
Gap between blades: approx. 0,1 mm
Blade life per sharpening: 150-800 m³ of wood chips
Chassis: with road number plate
Tyre size: 10"
Parking brake: yes
Turntable between chipper and trailer: yes - 8 45° positions
Overload protection: slipping of the belts
Dimensions in transport position (length x width x height): 431 x 208 x 349 cm
Dimensions in working position (length x width x height): depends on the position of the conveyor belt
Chip output: folding conveyor belt 4,1 m
Conveyor belt drive: belt transmission
Conveyor end height at 30° angle: 290 cm
Conveyor end height at 40° angle: 348 cm
