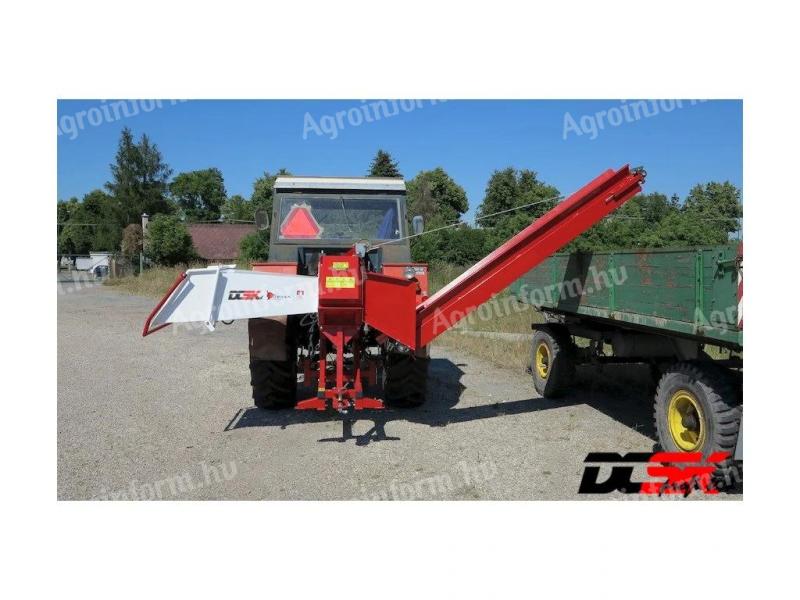

URBAN TR70 shredder with 2,6 m conveyor belt sideways

Spišské Podhradie, 053 04 SLOVAKIA

Sharing:

15

Description
The URBAN TR70 can be transported with a 2.6 m lateral carrier on a three-point tractor trailer. The optimum power of the tractor is 50 hp or more, with a minimum power of 30 hp. Drive is provided via a gimbal with overload clutch (not included). A flywheel is available for the shredder to reduce the shocks transmitted to the gimbal and the tractor transmission.

UP TO 80 MM DIAMETER
The machine is supplied with: anti-tipping chains for the tractor hydraulics, roller coupling with ISO 50 ball, instruction manual including declaration of conformity

weight:340 kg
Max. fresh softwood (pine) diameter:80 mm
Max. fresh hardwood (oak, hornbeam) diameter:65 mm
Max. diameter of dry hardwood (oak, hornbeam):50 mm
Max. prism dimensions (spruce):60 x 60 mm
Max. board dimensions (spruce):190 x 20 mm
Chip length (not adjustable):6 - 13 cm
Opening for the chipping unit:200 x 200 mm
Hopper inlet opening:700 x 400 mm
Maximum capacity:6 m3 / h
3-point vo
