Description

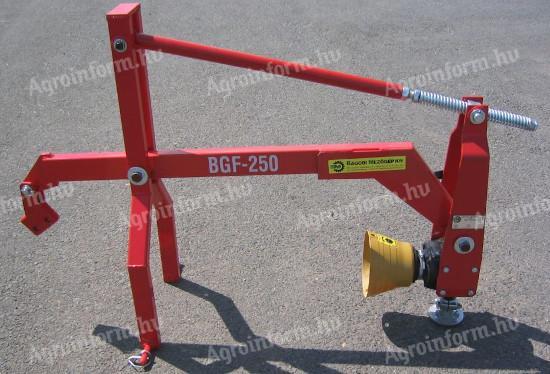

BGF-U type universal hole drills (BGF-250-U, BGF-350-U, BGF-450-U, BGF-H-600-U) can be operated with tractors with a minimum power of 8-30 kW (10-40 HP). They are suitable for forestry and agricultural operations, planting of various tree species, vine planting, drilling of fence posts.

Structural design:
- there is a support frame with the associated gearbox support, made of lock section and rough plate;
- there is a suspension frame with three-point suspension, welded from lock section and rough sheet metal;
- one outrigger with a threaded end with a spiral kicker;
- an actuator;
- a drill spiral;
- a torque limiting gimbal.

From these components, the auger can be assembled using pins and screws. For models BGF-250-U and BGF-350-U, the part of the auger that is connected to the drive is flanged and is made with 4 bolts and nuts. At the bottom of the drill bit there is a leading edge and two cutting edges. For the models BGF-450-U and BGF-600-U, the auger has the same design as the previous two, except that the part connecting to the drive unit has a tapered end, two grooves for the transmission of force and is fixed in place by a retracting screw. After mounting on the tractor, the torque limiting universal joint is fitted. The body of the drill is adjusted by adjusting the kicks at the threaded end of the support arm so that it is in a vertical position when in contact with the ground.

Drill spindle diameters: 180 mm, 250 mm, 350 mm, 450 mm, 600 mm depending on the type.
Working depth: 850-900 mm
Daily output: 600-1200 drilling operations
