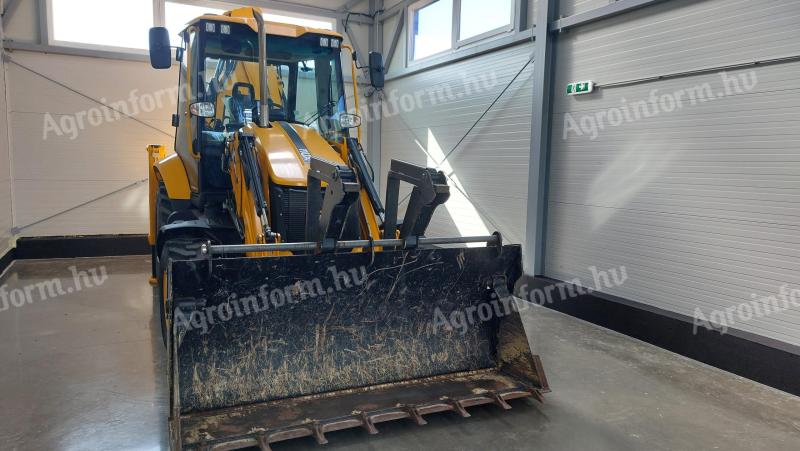

JCB 3 CX Plus

28.000.000 HUF +VAT

Bács-Kiskun county, 6000 Kecskemét

Sharing:

5

Description
1 JCB 3CX Plus excavator loader, as new: 4/1 bucket, 2 excavator buckets, JCB 033 break-head
Operating weight: - operating weight of the equipment 8135 kg,
Machine number: 3014854
Engine: - 4,800 cm3 4-cylinder direct injection water-cooled JCB Ecomax Stage V turbodiesel engine (81 kW/109 hp)
- Built-in SCR (AdBlue injection) and DPF (particulate filter) for environmentally friendly operation
- automatic engine stop (after a preset time) for better fuel economy
Cab: - ROPS/FOPS safety cab, providing enhanced operator protection
- lever control with optional SAE + or x mode (optional when ordering)
- operator seat with lumbar support, adjustable in all directions
- ergonomically positioned controls
- extremely low internal noise level of 75 dB
- 7" colour LCD display
- automatic safety belt
- 3-stage fresh and internal air circulation, heating
- air conditioning
- immobiliser integrated in the ignition key
- enlarged exterior and interior mirrors
- speedometer clock
- bluetooth radio with built-in speakers
- LED amber indicators recessed in the corners of the cab roof
Steering: - fully hydrostatic system, emergency steering in case of engine failure
Electrical equipment:
- 12 volt negative earth, IP69 tested wiring and connectors
- Central fuse panel, 120 Ah JCB battery
- with work lights, complete with lighting suitable for road traffic
- horn, which can be operated in all working phases
Gearbox:
- special gearbox designed and manufactured by JCB, developed for JCB backhoe loaders
- Synchronised gearbox in all gears, which can be engaged under load
- four speeds forward and reverse, /POWERSHIFT/ with directional control,
- maximum forward speed: 41,8 km/h
Torque Lock:
- JCB Torque Lock allows the operator to significantly reduce the time needed to move forward, improving fuel efficiency in road transport.
Tyres:
- Front: Michelin 340/80-18".
- Rear: Michelin 480/80-26".
Speed stabilizer (SRS):
- connected to the lifting cylinders of the load carrier, when active, the system compensates for uneven road or terrain, ensuring a smoother ride
Hydraulic system:
- axial piston pump, which always ensures optimum oil delivery according to the load
- Pump capacity: 165 l/min
- Working pressure: 251 bar
Loading structure:
- with opening and closing loading bucket (1,2 m3), pallet fork, bucket leveler, equipped with nails
- 5/8 loading hydraulics
- fingerguards for road transport
- loading height: 3200 mm
- discharge height: 2720 mm
2020 m:
- With laterally sliding telescopic deep-digging mechanism with boom clamp (for road transport),
- 300 mm backhoe bucket (equipped with nails)
- 600 mm deep-digging bucket (fitted with nails)
- 1500 mm hydraulically tilting brass spoon
- with hammer and brass hydraulics
- HM 033T with hydraulic demolition hammer
- mechanical quick coupling (QH)
- maximum digging depth: 5970 mm
- maximum boom reach: 6520 mm
Automate system:
- automatic idling when excavating (after 3 seconds, when the excavator attachment is not in use)
- automatic speed reset when returning to the excavator attachment
- when driving, the machine maintains the engine speed set at any desired speed (cruise control)
JCB LiveLink telematics system with 5-year availability:
- a satellite tracking system that allows JCB owners to remotely monitor their machines and retrieve data related to their operation: positioning, geo-fencing, hours of operation, periodic maintenance, fuel level, fuel consumption
