Mini caravan For sale New

3.590.000 HUF +VAT (-36%)
2.290.000 HUF +VAT

Bács-Kiskun county, 6000 Kecskemét

Sharing:

10

Description
Technical data

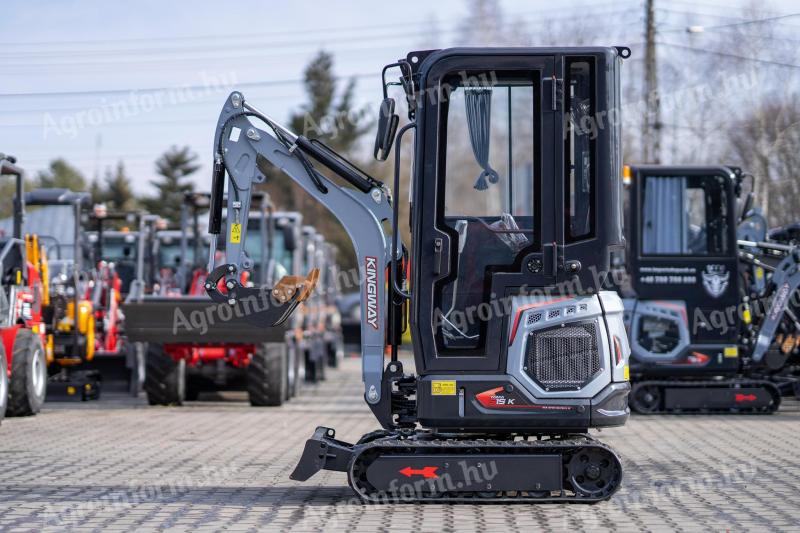

Model: HFT15
Machine weight (kg): 1200
Engine model: KOOP
Engine power (kW/LE): 7/9,5
Number of cylinders: 1
Oil cooler: YES
Articulated arm: YES
Extendable rails: NO
Max climbing capacity (º): 35º
Pump type: gear pump
Pressure (MPa): 16
Hydraulic oil flow (l/min): 25
Max speed (km/h): 2
Platform rotation speed (rpm): 9-10
Max. digging force (kN): 13
Ground pressure (kPa): 30
Fuel tank capacity (L): 15

Dimensions
Length (mm): 2870
Width (mm): 1000
Height (mm): 2150
Blade width (mm): 1000
Blade height (mm): 220
Print width (mm): 800
Width (mm): 180
Belly height (mm): 380
Standard spoon width (mm): 380
Overall length (mm): 1300

Operating
Max. digging height (mm): 2740
Max. excavation height (mm): 1750
Max. digging depth (mm): 1800
Max. vertical digging depth (mm): 1320
Max. digging radius (mm): 2400
Min. turning radius (mm): 1550
Max. digging radius at ground level (mm): 3227
Max. raised bulldozer blade height (mm): 325
Max. recessed bulldozer blade depth (mm): 175
