Baselier 4FK310 About the stock of 4FK310

Bács-Kiskun county, 6060 Tiszakécske

Sharing:

5

Description

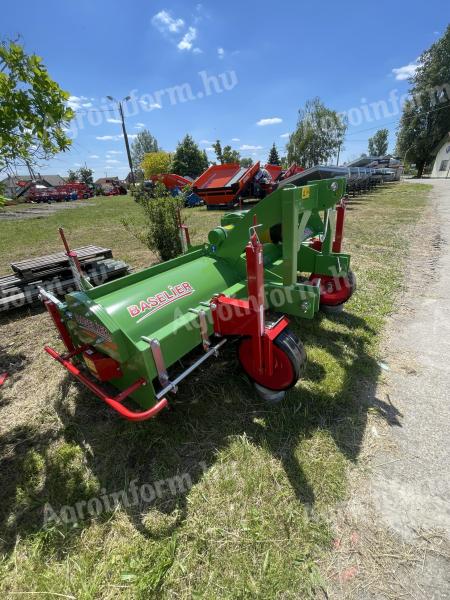

The Baselier 4FK310 is a robust, TLT-driven rotary batch cultivator specifically designed to produce well-formed and compact batches, especially for potatoes and carrots.

Key features:

- Purpose: Primarily for making potato and carrot baks. Primarily for use in the preparation of hay bales.
- Number of rows: usually 4 rows with a row spacing of 75 cm, but potentially adaptable to other row spacings.
- TLT gearbox: equipped with a TLT gearbox with a speed of 1000 rpm.
- Drive: equipped with a chain drive system, often with a single side drive. Some models, such as the 4FKBW 310, have a double-sided drive without a centre bearing.
- Rotor shaft: Operates at approximately 360 rpm, 75 cm diameter. It uses welded hooked teeth, which are fixed on brackets.
- Adjustments: Adjustable working depth (up to 10 cm) with spindle adjustment and adjustable pressure force at the top of the bite hooks.
- Depth support: usually with adjustable depth support steel wheels.
- Shaping cover: Has an adjustable shaping cover, often with parallel suspension and cover plates for shaping the ridge. Options exist for different row spacings and even for small row spacing configurations of seed potatoes. Some covers have high speed plates and plastic or stainless steel inner plates.
- Power requirements.
- Weight: approximately 1300-1500 kg.
- Capacity: Up to 1.2 hectares per hour.
